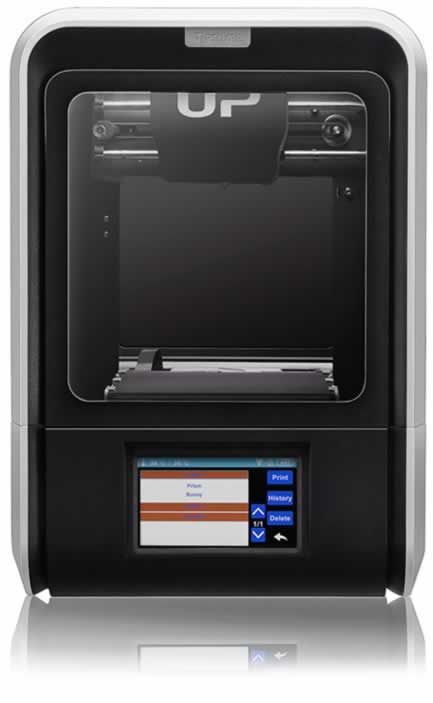

UP mini 2 ES

3D Printer Accessibility Redefined

$699

What's new in UP mini 2 ES?

The UP mini 2 ES is a more advanced mini 2 with improved hardware and software.
It inherited its predecessor’s full enclosure with built-in HEPA and activated carbon filter.

Tiertime Print Queue

Coming with the feature like Tiertime print queue,
it fits more in the office,
classroom and home environments.

Touchscreen Control

Upgradeable System
Editable Printer IP Address
Print Job Storage

More Connectivity

Ethernet Socket
Extra USB Port

4.3 Inch LCD Touchscreen

Upgraded

An updated control screen verses the original mini 2, it has more features and functionality, plus the ability to be enhanced via future upgrade-able touchscreen system.

3D Printing Workflow

Enhanced

An Ethernet socket allows you to connect your printer to a wired Local Area Network for maximum security.

Tiertime Print Queue

Tiertime’s new Print Queue allows more than one user to send print jobs to the printer simultaneously.
Files to be printed appear in the queue’s print list on a first come, first serve basis.

Allows multiple users to send print jobs from different devices to the same printer via USB/ Wi-Fi/ LAN.

Version 1

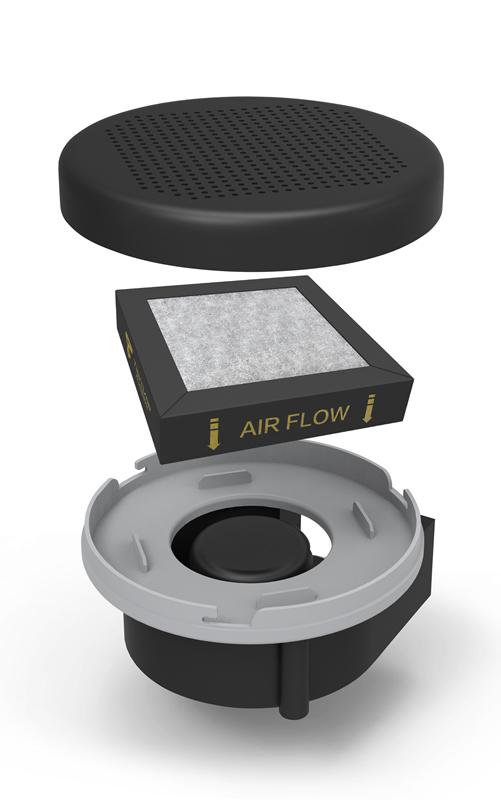

HEPA and Activated Carbon Filter

3D printing certain materials such as ABS can generate potentially harmful
UFP and VOC emissions. The HEPA and Activated Carbon filter effectively
reduce these toxic elements, known to be triggers for those suffering from
哮喘和其他肺部疾病。

Specifications and Warranty

Printer

Printing Technology MEM (Melted Extrusion Modelling)
Extruder Single
Nozzle Diameter 0.4mm
Extruder Maximum Temperature 299℃
Extruder Maximum Travel Speed 200 mm/sec
XYZ Accuracy 5, 5, 5 micron
Connectivity USB Cable, Wi-Fi, LAN and USB Drive
Display 4.3″ Full Colored LCD Touchscreen
Build Volume 120 ×120 ×120 mm (7″ x 9″ x7.8″)(XYZ)
Printed Object Accuracy ±0.1mm/100mm
Layer Resolution 0.15/0.2/0.25/0.3/0.35mm
Build Plate Maximum Temperature 70℃
校准and Levelling Auto Nozzle Detect
Build Plate Surface Perf or Flex, Heated
Pause to Change Filament Type Yes
Filament UP Fila ABS, ABS+, PLA, TPU and more
Filament Diameter 1.75mm
Filament Spool Compatibility 500g
Compatible with 3rd Party Filament Yes

Software

Software UP Studio Version 2.5 or above
Supported OS Windows 7 (SP1) or higher (32 bit and 64 bit) Mac OS 10.10
Hardware Requirements OpenGL 2.0 At least 4GB of RAM
Importable File Formats .up3, .ups, .tsk, .stl, .obj, .3mf, .ply, .off, .3ds
Preview Support Structures Yes
Editable Support Structures Yes

Physical Dimensions

Machine Dimensions 255 x 365 x 385 mm (19.3″ x 20.5″ x 18.1″)
Net Weight 52kg
Shipping Box Dimensions
Shipping Box Weight 7.5kg

Power Requirements

Power Input 110-240VAC,50-60Hz,90W
