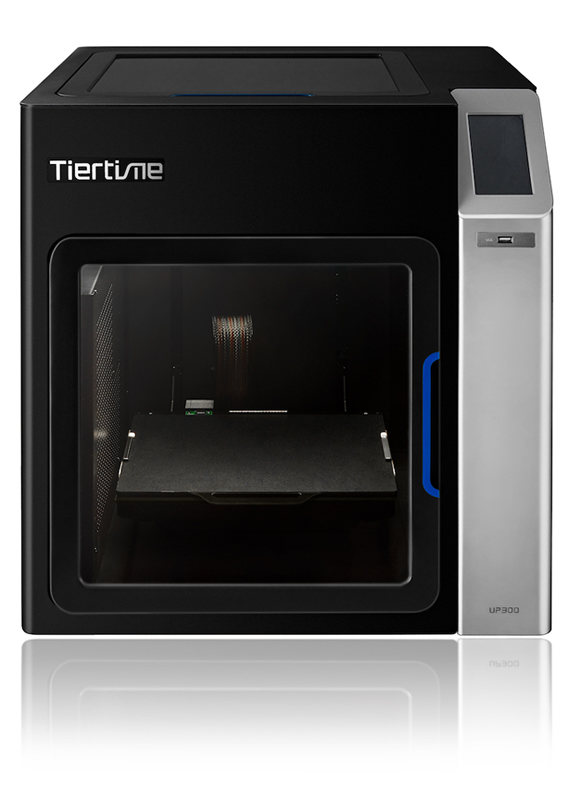

Large build volume
and consistent performance across different materials

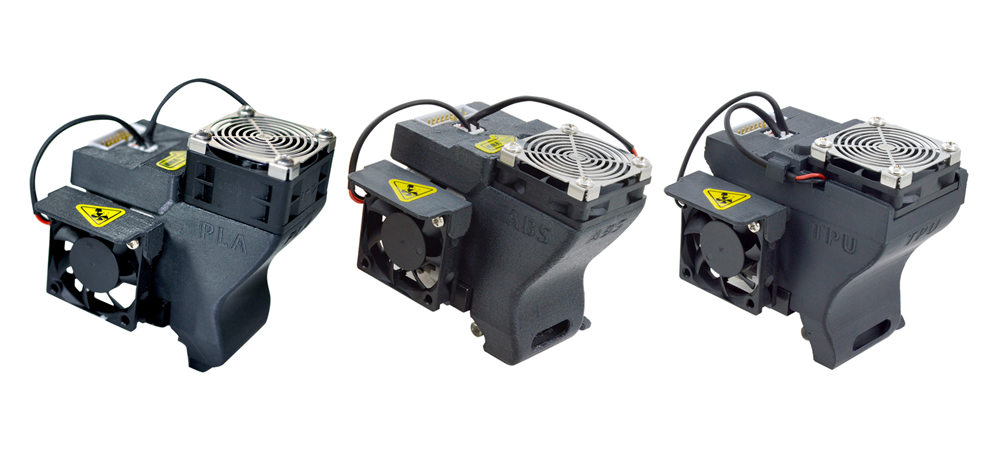

One is for ABS and other high temperature filaments, one for lower temperature filaments such as PLA, and the other is for TPU, a flexible polyurethane.
New double-sides build plate design allows for easier print job removal due to its rigidity.
A removable waste collection tray is positioned below the build platform to make cleaning the bottom of the printer’s enclosure a breeze.
Allow multiple users on the network can become the queue’s administrator, controlling and re-ordering the print queue.
One is for ABS and other high temperature filaments, one for lower temperature filaments such as PLA, and the other is for TPU, a flexible polyurethane.
Glass surface provides a consistent, flat base,
ensuring a smooth model underside, desirable for printing without a raft.
Higher airflow capacity
capable of maintaining minimal UFP and VOC density inside the printer’s large enclosure.
Printer |
|
| Printing Technology | MEM (Melted Extrusion Modelling) |
| Extruder | Single |
| Nozzle Diameter | 0.2mm, 0.4mm, 0.6mm, and 0.5mm (TPU) |
| Extruder Maximum Temperature | 299℃ |
| Extruder Maximum Travel Speed | 200 mm/sec |
| XYZ Accuracy | 7, 7, 1.5 micron |
| Connectivity | USB Cable, Wi-Fi, LAN and USB Stick |
| Display | 4.3″ Full Colored LCD Touchscreen |
| Build Volume | 205 × 255 × 225 mm (8″ x 10″ x8.8″)（XYZ） |
| Printed Object Accuracy | ±0.1mm/100mm |
| Layer Resolution | 0.05/0.1/0.15/0.2/0.25/0.3/0.35/0.4mm |
| Build Plate Maximum Temperature | 100℃ |
| 校准和Levelling | Automatic |
| Build Plate Surface | Perf Glass or Flex Glass,Heated |
| Pause to Change Filament Type | Yes |
| Out of Filament Detection | Yes |
| Filament | UP Fila ABS, ABS+, PLA, TPU and more |
| Filament Diameter | 1.75mm |
| Filament Spool Compatibility | 500 – 1000g |
| Compatible with 3rd Party Filament | Yes |
Software |
|
| Software | UP Studio Version 2.5 or above |
| Supported OS | Windows 7 (SP1) or higher (32 bit and 64 bit) Mac OS 10.10 |
| Hardware Requirements | OpenGL 2.0 At least 4GB of RAM |
| Importable File Formats | .up3, .ups, .tsk, .stl, .obj, .3mf, .ply, .off, .3ds |
| Preview Support Structures | Yes |
| Editable Support Structures | Yes |
| Cloud Print Settings | Yes |
Physical Dimensions |
|
| Machine Dimensions | 500 x 523 x 460 mm (19.6″ x 20.5″ x 18.1″) |
| Net Weight | 30kg |
| Shipping Box Dimensions | 610 x 565 x 600 mm (24″ x 22.2″ x 26.4″) |
| Shipping Box Weight | 42.5kg |
Power Requirements |
|
| Power Input | 110-240VAC，50-60Hz，220W |
